Hti HT-19 Thermal Imager Review – High Resolution Camera Suitable for Multiple Applications

Last updated on August 6, 2020

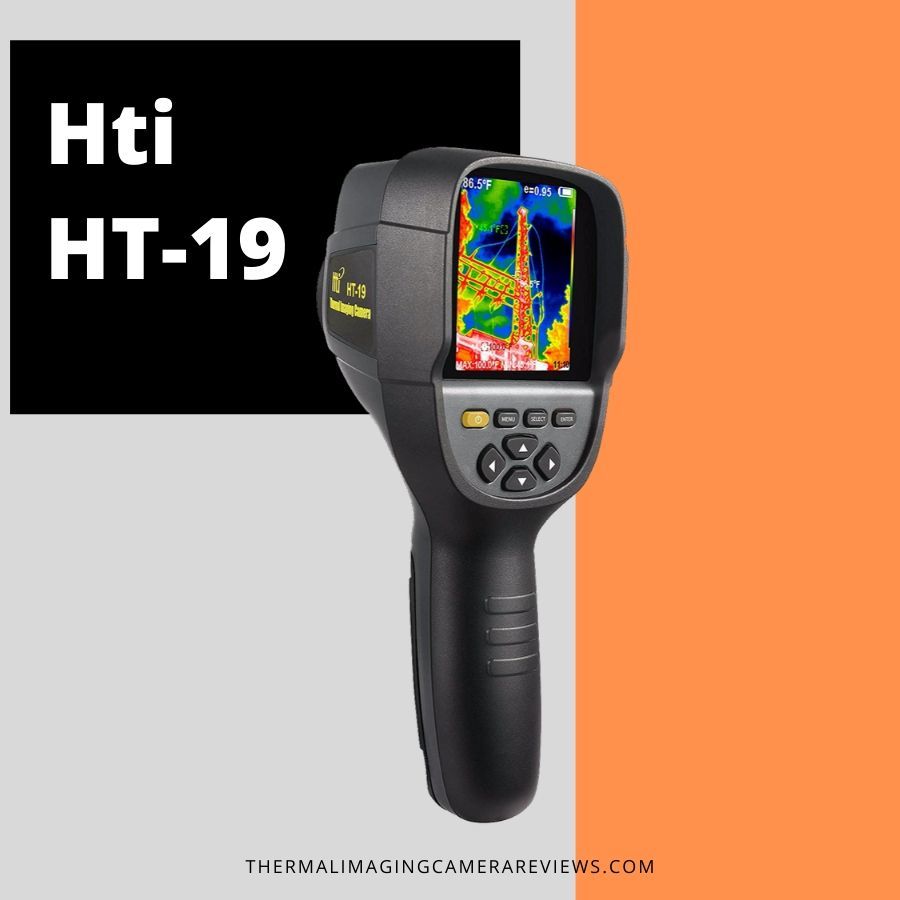

Hti HT-19 Thermal imaging camera

Are you in the market for a new thermal imaging camera, but don’t want to break the bank?

If you are, you’re not alone. For too long the devices we need to get our jobs done properly have been too expensive and inaccessible. Many people in your situation find their ideal thermal imaging camera in Hti’s list of products.

Hti has been operating since 2009 and has slowly but surely earned itself a reputation as being one of the best of the best thermal imaging camera manufacturers.

Could one of the company’s bestselling products be the thermal imaging camera perfect for you? Let’s find out.

HT-19 Thermal Camera

New Higher Resolution 320 x 240 IR Infrared Thermal Imaging Camera. Model HTI-19 with Improved 300,000 Pixels, Sharp 3.2" Color Display Screen, Battery Included. Lightweight Comfortable Grip.

The HT-19 is one of the latest, and already one of the most popular, additions to Hti’s product offering. But what makes this device so popular? As it turns out, the HT-19 has a range of features included in its design that contributes to the device’s success amongst its users.

An automatic-off setting means that you won’t need to worry about the battery draining because you forgot to switch off the device. You can choose to activate this setting after 5 or 20 minutes—it’s up to you.

If you have a color preference, you’ll appreciate the five color palettes you can pick from to display readings in a way you like. Pick from Rainbow, Iron Oxide Red, Cold Color, Black and White or White & Black palette options.

Up to 20 000 images can be stored on the built-in 3GB SD card and you can easily transfer those images to a computer for report generating purposes.

New Higher Resolution 320 x 240 IR Infrared Thermal Imaging Camera. Model HTI-19 with Improved 300,000 Pixels, Sharp 3.2" Color Display Screen, Battery Included. Lightweight Comfortable Grip.

Users also appreciate that the device’s battery is chargeable through a 2.0 Micro USB, eliminating the inconvenience of constantly having the buy new batteries. On top of this, a single charge will keep the device functioning for up to 3 hours, which is more than enough time for you to get the job done without the batteries dying on you.

Design

The HT-19 features a simple, intuitive design that is user-friendly in every regard. Its 3.2” color display screen is easy to view and displays images in 320 x 240 resolution. Traditional buttons make navigating the screen a breeze, which is great for when you’re in the middle of a task.

New Higher Resolution 320 x 240 IR Infrared Thermal Imaging Camera. Model HTI-19 with Improved 300,000 Pixels, Sharp 3.2" Color Display Screen, Battery Included. Lightweight Comfortable Grip.

An ergonomic grip handle ensures that the device is comfortable to hold for as long as you need to. At 90mm x 105mm x 223mm the HT-19 is compact and weighing in at just 389g is lightweight for easy usage, transportation & storage.

Specifications

Now that we’ve covered the HT-19’s design and features, let’s take a look at the specifications that make this device what it is:

  • Visible image resolution: 300,000 pixels
  • Thermal resolution: 320x240
  • Field angle: 26° x 34°/2.0m
  • Thermal sensitivity: 0.07°C
  • Temperature range: -20°C to 300°C
  • Accuracy: +/-2% or +/-2°C
  • Emissivity: Adjustable from 0.01 to 1.00
  • Frame rate: 9Hz
  • Wavelength coverage: 8-14um
  • Working temperature: 0°C to 45°C
  • Storage temperature: -20°C to 60°C
  • Relative humidity: <85% RH

Best Used For

Part of what makes the HT-19 so popular is that it can be used for numerous purposes, in numerous settings. Thermal imaging cameras, including the HT-19, are most commonly used in the following applications:

New Higher Resolution 320 x 240 IR Infrared Thermal Imaging Camera. Model HTI-19 with Improved 300,000 Pixels, Sharp 3.2" Color Display Screen, Battery Included. Lightweight Comfortable Grip.

Warranty

The HT-19 is covered by a 24-month warranty and you get access to a lifetime of technical support. On top of their warranty that aligns with the industry standard, the Hti team offers a 15-day 100% money-back guarantee.

x
Product from Amazon, Publisher may get a commission
AdChoices
Product from Amazon, Publisher may get a commission
Leupold LTO Tracker 2 Thermal Viewer, Black (177187)

By Leupold (Nov 7, 2019)

$638.99
Rated 4.1 out of 5 by 144 reviewers on Amazon.com

FAQ

Before we wrap this article up, we’ll provide answers to the most frequently asked questions about the HTI HT-19. If your question is not answered below, feel free to reach out to us in the comments section below and we’ll do our best to answer you.

Can it detect rats and other pests behind walls?

No, in almost all circumstances the HT-19 cannot detect rats and other pests behind walls as it only reads surface temperatures. Only when a pest has remained, unmoving, behind the wall for an extended period of time is this possible.

Can it help me detect leaks?

Absolutely. In fact, leak detection is one of the routine tasks that the HT-19 excels in. Water and air leaks are quickly detected & clearly displayed on the screen.

Can it help me detect circuit board issues?

Certainly. The device can effectively detect issues found on circuit boards. However, it is recommended that you purchase an additional lens for even better efficiency.

Does it have manual focus?

No, the HT-19 does not have a manual focus option. The device has a fixed focus mode only.

Can it detect animals in the dark?

Yes, the HT-19 can detect animals in the dark up to 165ft away. In saying that, the HT-19 was not designed with this purpose in mind. If this would be your primary reason for purchasing the device, we recommend getting a thermal scope or monocular.

Can it stream a live feed to a computer?

No, the HT-19 cannot stream a live feed to a computer. It can only capture images on the 3GB SD card which can then be transferred to a computer via micro USB connection.

What’s the difference between HT18 and HT19?

The HTI HT-18 and Ht-19 are identical in design which leads many people to ask if there are any differences between the two Hti products. There is one difference: the resolution. The HT-18 has a resolution of 220 x 160 while the HT-19 has a 320 x 240 resolution.

Final Thoughts

At the end of the day, the HT-19 is a no-frills product that will get the job done. No matter which application you intend to use it in, its sturdy design and comprehensive features will make it a valuable tool to use on a number of jobs.

The HTI HT-19 is affordable and accessible, so we recommend getting your hands on one to decrease your issue identification time & increase your overall response time. When you consider the 15-day money-back guarantee as well as the 24-month warranty, you really have nothing to lose.

0/5 (0 Reviews)

About the author

Randy Angwin

Randy Angwin is an avid outdoor enthusiast and has been with TICR since the beginning. He helps create new articles and reviews latest infrared and night vision devices for the site as well as staying on top of the latest trends in the thermal industry. When not working, Randy likes to hunt and spend time with his two German shepherds.

  • This review is for the HT19, firmware V2.18, bought May 2020

    Based on image resolution, dual camera CCD sensors (normal and infrared) the HT19 is aimed at competing with the Flir E6. This is why I bought it.

    The HT19 does a reasonable job, however the images are very grainy compared to the E6.

    The boot time is excessive at 14 seconds (full battery), where you are left staring at a picture of a car motor. It would be far more useful to show the camera model number, the firmware version, how much memory is left on the camera for picture taking and finally, the camera resolution and year and month of manufacture. I don’t car about looking at picture of a car engine.

    The biggest down side is that the normal vision camera is not connected or used. I say this from four observations on the function of the camera.

    1) The image registration function does not work. The normal daylight vision vision is missing completely and you can do nothing to image register. There are no two sensor images to register. You only get the thermal image.

    2) When you block the normal image sensor, nothing changes on the camera function in either thermal mode or image registration mode.

    3) There is no menu function for you to call up and see the normal vision image to screen.

    4) The HT19 only allows recording the thermal image. The normal vision camera image does not exist. In comparison, the FLIR E6 automatically records both the normal vision image and thermal image to JPG.

  • Update

    Since I’m unable to edit my first review on the HT19, I’d like to post a follow up comment. The normal vision camera does work and the the image registration works as well. The instruction manual fails to mention , to use the sideways keys in normal operation to first cycle through the option of overlaying normal with infrared images. If you try to image register the two CCDs in default mode, the system “fails”, that is normal vision image is switched off and it appears that you cannot image register.

    Suggestion to Xintest, the manufacturers of the HT19. Instead of relying on the user to take the camera out of default mode of infra red only, put the camera into overlay mode automatically when doing an image registration. The camera is working correctly, but the software UX for image registration is set up for a fail if the user does not first activate both cameras in normal viewing mode, using the sideways keys. This is not explained in the instruction manual.
