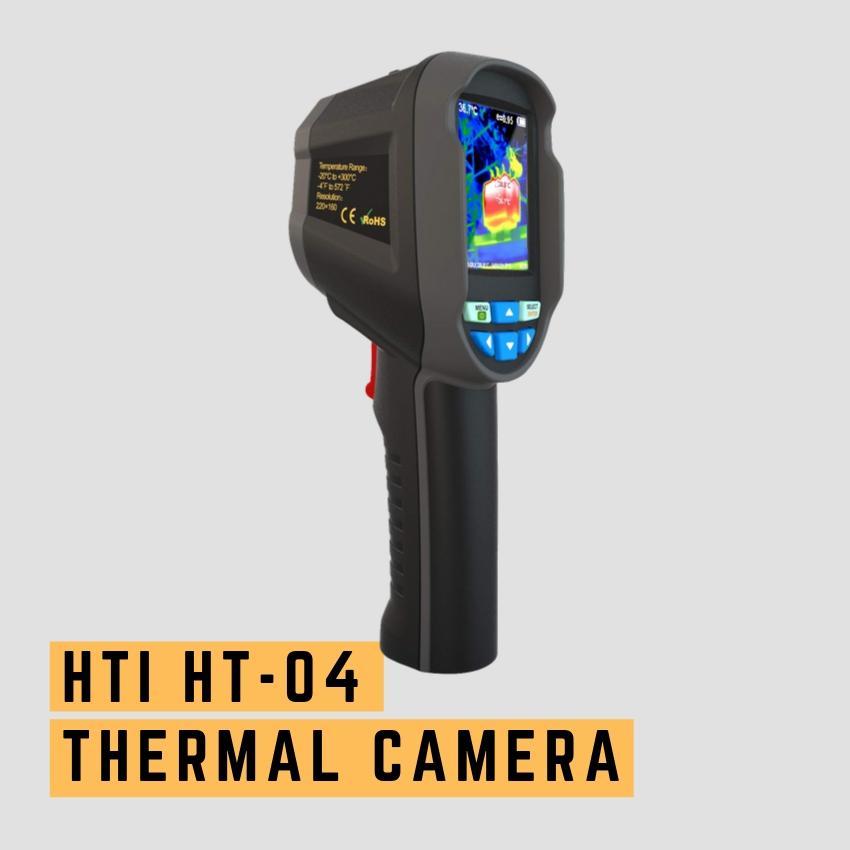

HTI HT-04 thermal imaging camera

Thermal imaging cameras have become a new trend because of their effectiveness to detect problems you can’t see with the naked eye. Thermal imaging makes it possible for you to see through walls using infrared technology that picks up fluctuations in temperatures.

The HTI HT-04 takes the guesswork out of buying a house and wondering if there might be serious faults you’re not aware of. You can now do thorough home inspections using the HTI HT-04 thermal imaging camera. It picks up on electrical faults and can detect moisture trapped in the walls.

Thermal Imaging Camera, Inferred Camera with Real-Time Thermal Image, 2.8 Inches Full Angle TFT Display, Temperature Measurement Range -4 To 572 Degrees Fahrenheit, HT-04 New

It’s widely used across several industries such as pest control, plumbing, heating, ventilation and air conditioning (HVAC) for routine diagnostic maintenance. The HTI HT-04 is a valuable tool practical enough for everyday use. It has a visible light camera that allows for improved differentiation and remarkable shots, giving you high-resolution pictures every time.

Dongguan Xintai Instrument Co. Ltd is the manufacturers of this innovative device and other designs such as IR thermometers, sound level meters and various techno-savvy innovations. They have extensive experience in manufacturing technological solutions for modern age problems. They provide turnkey solutions from the conceptualizing stage to prototyping and proceeding into production.

Before we unpack it more, let’s look at the key features on the HTI HT-04.

HTI HT-04

Thermal Imaging Camera, Inferred Camera with Real-Time Thermal Image, 2.8 Inches Full Angle TFT Display, Temperature Measurement Range -4 To 572 Degrees Fahrenheit, HT-04 New

The key features that set the HTI HT-04 apart from its competitors are:

Design:

It has an innovative design that’s similar to a gun style for easy application. It’s lightweight and easy to handle. The user menu is conveniently positioned on the front panel with all the navigation buttons within easy reach. It’s small enough to stow in compact spaces and made from durable quality materials.

Thermal Imaging Camera, Inferred Camera with Real-Time Thermal Image, 2.8 Inches Full Angle TFT Display, Temperature Measurement Range -4 To 572 Degrees Fahrenheit, HT-04 New

Thermal Resolution:

It comes with a thermal sensor that gives you high-resolution pictures. You get an impeccable image at 220x160 pixels every time. The color screen allows you to see different temperatures. This helps you discern subtle temperature differences easily due to its crystal clear clarity.

Color palettes:

You have a range of colors to select from. The high heat temperature colors are used to improve the color contrast between temperatures. They’re the rainbow, iron oxide red and cold color on the palette. The white heat and black heat colors are used to provide a linear color during inspections.

Thermal Imaging Camera, Inferred Camera with Real-Time Thermal Image, 2.8 Inches Full Angle TFT Display, Temperature Measurement Range -4 To 572 Degrees Fahrenheit, HT-04 New

LED light:

There’s a built-in LED light that can be used as a spotlight if you’re working in dim light. It’s also used to enhance and illuminate the photo quality.

Thermal Imaging Camera, Inferred Camera with Real-Time Thermal Image, 2.8 Inches Full Angle TFT Display, Temperature Measurement Range -4 To 572 Degrees Fahrenheit, HT-04 New

Image storage:

The device comes with a built-in 3Gb storage allowing you to store over 20 000 images. You can easily transfer your images to a PC or laptop using the USB cable. You’ll never have to worry about running out of storage and can always save an image & view later when you don’t have time straight away.

Display:

It has a 2.8” display screen that’s larger than most similar devices and allows an improved viewing experience. This assists in identifying the problem areas much quicker. You’re able to see the central point temperatures, the highest and lowest temperatures as well as the color codes. The LCD also shows the current emissivity and time. You can see how much battery power you have left in the corner of the screen.

Battery:

The device comes standard with rechargeable lithium batteries. It’s fitted with a USB feature to charge the batteries. It’s essential not to overcharge the battery so don’t exceed 24 hours of charging. To extend the battery life you can charge the thermal imaging camera for at least two hours every three months.

Thermal Imaging Camera, Inferred Camera with Real-Time Thermal Image, 2.8 Inches Full Angle TFT Display, Temperature Measurement Range -4 To 572 Degrees Fahrenheit, HT-04 New

Warranty:

It has a one year warranty against any defects and poor workmanship. The warranty doesn’t include damage caused by improper use or any negligence.

Troubleshooting Made Easier

The amazing mechanism on the HTI HT-04 allows for non-invasive troubleshooting. This makes it possible for you to predict the problem before it occurs. It’s able to accurately classify any hidden matters saving you money and time. The infrared thermal imaging allows you to see a hot or cold spot and measure temperatures. You can also store images for quick troubleshooting.

Troubleshooting makes it possible for you to pick up multiple problem areas you weren’t even aware of. It’s able to scan over different areas rapidly with instant results.

How To Take Care Of The Infrared Lens

The lens is the most important and fragile component on the HTI HT-04 & good lens maintenance is vital. Here are some easy steps to avoid damage to the lens:

  • The lens has been coated with a refined anti-reflection coat for protection, so clean it carefully
  • Don’t use excessive force when cleaning the lens or else you may damage the anti-reflection coating
  • Only use alcohol-based cleaning solutions specifically made for lens maintenance and use a clean paper towel or lint-free cloth to wipe with
  • Use a compressed air tank to blow the loose specks from the lens exterior
  • When you’re ready to clean the lens, dip the cloth into the alcohol cleaning solution and wipe gently across the lens
  • When you wipe the lens make circular motions to cover the entire surface
    If necessary repeat the above step but use a new cloth every time you wipe
x
Product from Amazon, Publisher may get a commission
AdChoices
Product from Amazon, Publisher may get a commission

Final Thoughts

Using a thermal imaging camera such as the HTI HT-04 gives you an increased level of awareness that wasn’t afforded in traditional inspections. The thermal sensor sees heat in new ways and can easily detect blockages, leaks & any mechanical malfunctioning systems with ease.

It’s the future in the palm of your hand. It’s one of the best technological inventions and has been the saving grace to many professionals & consumers. Whether you need to do a professional building inspection or check for electrical circuit overloads this is the ideal tool to use. It’s multi-functional in its application and can help you manage a range of issues inside & outside of buildings.

Let us know in the comments below how using a thermal imaging device has saved you time and money.
